Module – Exhaust Fan

Installs the exhaust fan and HEPA filter.

If the exhaust air is vented outdoors, the HEPA filter is not required.

If venting indoors, installing a HEPA filter is strongly recommended to remove harmful gases.

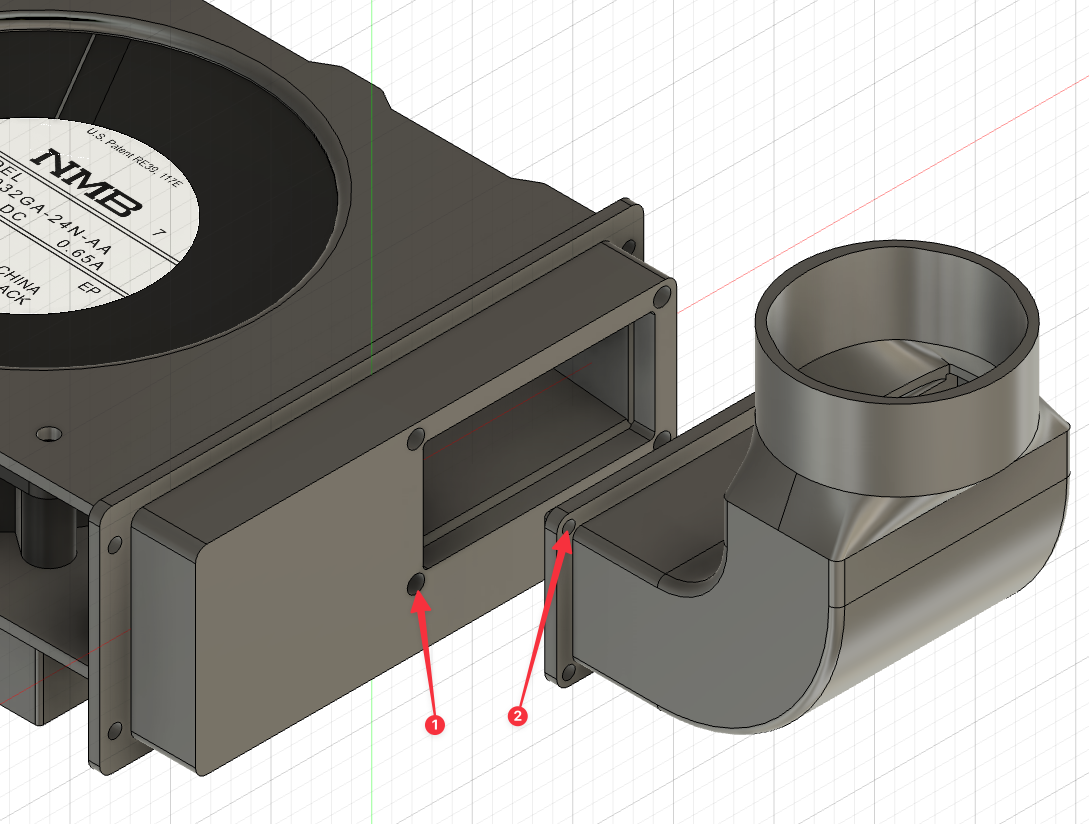

  1. Phillips screw M3 × 16 + M3 nut
  2. Phillips flat head screw M3 × 6

Installation Tips

  • Ensure the HEPA filter fits tightly to avoid air leakage.

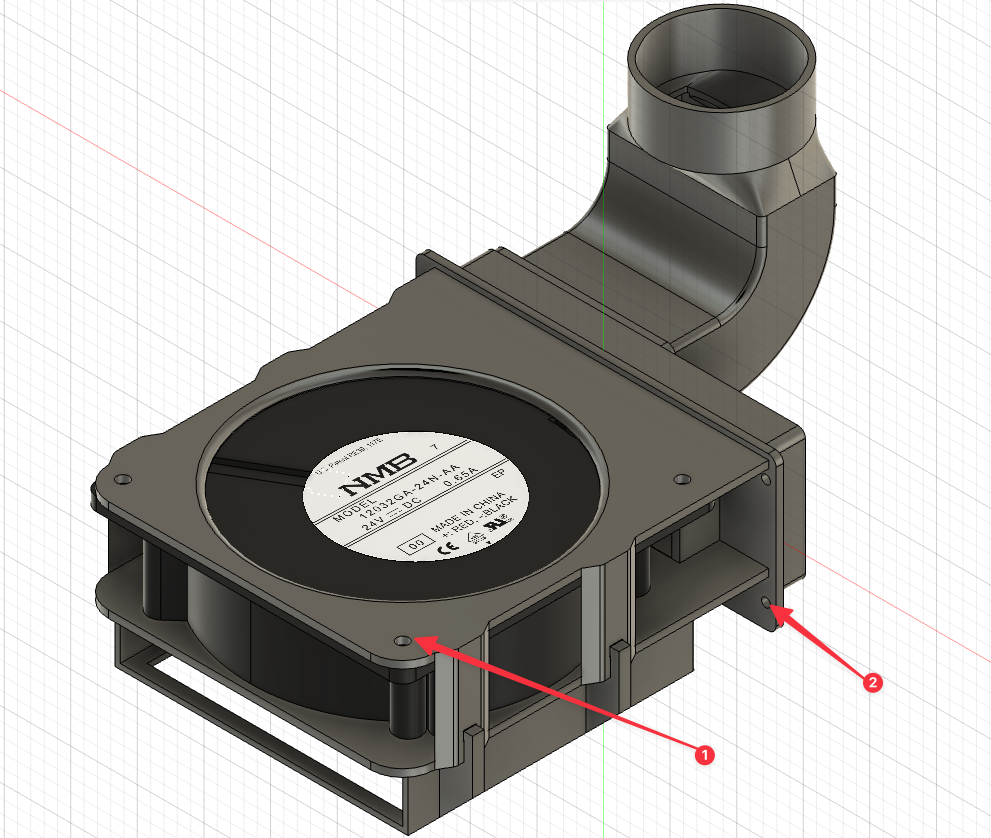

  1. Heat-set insert M3 × 5 × 4.2
  2. Phillips flat head screw M3 × 6
